FarField Pro/Long Range RFID PCB Antenna

FarField Pro/Long Range RFID PCB Antenna

Model: WBN-FF/RFID(US)1919
Applications
❶ 902-928MHz (RFID) Radio Frequency Identification)
❷ 865-868MHz for ETSI is available on requirement
❸ File document & Jewelry Cabinet
❹ Tool Management, Retail Smart Checkout
Features
❶ Offer True FarField read zones
❷ Easy Installation hidden
❸ No surface dead zones
❹ Low VSWR at 1.3 with available cable extension
Descriptions
WBN-FF/RFID(US)1919 FarField Pro antennas are explicitly designed for applications, which require “Far zone only” tag detection or involves metals, liquids or any other challenging materials. With almost any far-field components and no surface dead spots, the FCC FarField Pro antennas provide reliable tag reads within a flexible read zone depends on input power of reader

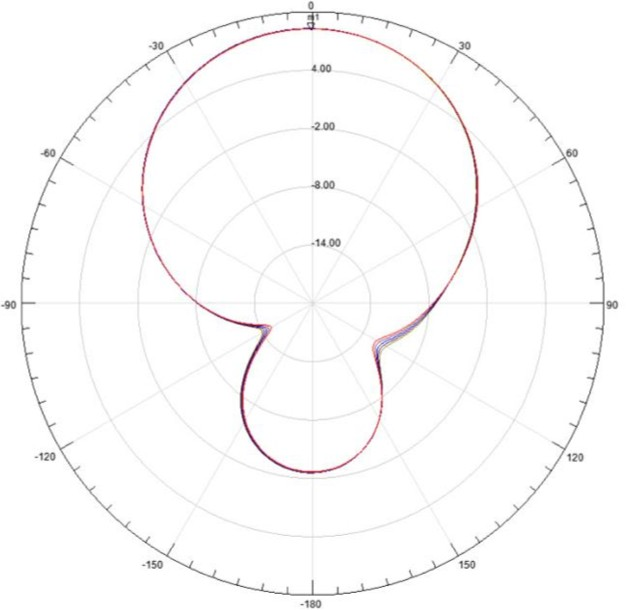

Radiation Pattern                                              Dimension

Mechanical Specifications
Cable Length 30cm Cable (Optional)
Connector SMA-Male/Female (Optional)
Weight 0.104 Kg
Dimensions 190 x 190 x 16 mm
Reflector Material FR4
Radome Material PCB
Radome Color Refer to the Picture

Electrical Specifications
Frequency Range 902-928MHz
Gain 8dBi
Polarization Circular
VSWR (Typ) < 1.3
Axial Ratio ≤2dB
Horizontal Beam-Width 60°
Vertical Beam-Width 60°
Max. Input Power 50 Watts
Impedance 50 Ohm
Lightning Protection DC Grounded

Application Demonstration
RFID Portal
Using a Far-Field antenna for door control systems is a great way for items monitoring, personnel control  and etc. This enable identifying each item or person in the doorway and it can be hidden inside of portal.
A FF antenna can instantly and correctly identify all passing items and personnel that are crossed on the antenna detecting area with no stray reads.
Thanks to our unique antenna design, which scales easily in size, the FarField Pro antenna series offers different dimensions. If you require a different surface, please tell us

The following are our standard far field antenna
Model No. Antenna Dimension - mm Gain - dBi
WBN-FF/RFID(US)1010 101x 101 x 10mm 4dBi
WBN-FF/RFID(US)1919 190 x 190 x 16 mm 8dBi
WBN-FF/RFID(US)2020 200x 200 x 14mm 7dBi
WBN-FF/RFID(US)2511 250 x 110 x 20mm 4dBi
WBN-FF/RFID(US)3419 340 x 190 x 09mm 5.5dBi
WBN-FF/RFID(US)3030 300 x 300 x 20mm 10dBi
WBN-FF/RFID(US)3434 340 x 340 x 20mm 9dBi
WBN-FF/RFID(US)3730 370 x 300 x 20mm 9dBi
WBN-FF/RFID(US)3520 360 x 200 x 21mm 10dBi
WBN-FF/RFID(US)3535 350 x 350 x 20mm 9dBi
WBN-FF/RFID(US)4008 400 x 80 x 25mm 5dBi
WBN-FF/RFID(US)4020 400 x 200 x 14mm 9dBi
WBN-FF/RFID(US)4620 460 x 200 x 14mm 9dBi
WBN-FF/RFID(US)6040 600 x 400 x 25mm 14dBi
WBN-FF/RFID(US)6819 680 x 190 x 20mm 11dBi
